CAZyme Information: MGYG000002061_00982

You are here: Home > Sequence: MGYG000002061_00982

Basic Information | Genomic context | Full Sequence | Enzyme annotations |  CAZy signature domains |  CDD domains | CAZyme hits | PDB hits | Swiss-Prot hits | SignalP and Lipop annotations | TMHMM annotations

Basic Information help

Species QAMX01 sp004555605
Lineage Bacteria; Firmicutes_A; Clostridia; Oscillospirales; QAMX01; QAMX01; QAMX01 sp004555605
CAZyme ID MGYG000002061_00982
CAZy Family GH13
CAZyme Description 1,4-alpha-glucan branching enzyme GlgB
CAZyme Property
Protein Length CGC Molecular Weight Isoelectric Point
631 72372.56 6.415
Genome Property
Genome Assembly ID Genome Size Genome Type Country Continent
MGYG000002061 2191757 MAG China Asia
Gene Location Start: 16963;  End: 18858  Strand: +

Full Sequence      Download help

Enzyme Prediction      help

EC 2.4.1.18

CAZyme Signature Domains help

Family Start End Evalue family coverage
GH13 176 473 2.4e-144 0.9933554817275747

CDD Domains      download full data without filtering help

Cdd ID Domain E-Value qStart qEnd sStart sEnd Domain Description
PRK05402 PRK05402 0.0 22 623 114 723
1,4-alpha-glucan branching protein GlgB.
PRK14705 PRK14705 0.0 22 618 617 1217
glycogen branching enzyme; Provisional
PRK12313 PRK12313 0.0 23 622 22 626
1,4-alpha-glucan branching protein GlgB.
cd11322 AmyAc_Glg_BE 0.0 113 510 1 402
Alpha amylase catalytic domain found in the Glycogen branching enzyme (also called 1,4-alpha-glucan branching enzyme). The glycogen branching enzyme catalyzes the third step of glycogen biosynthesis by the cleavage of an alpha-(1,4)-glucosidic linkage and the formation a new alpha-(1,6)-branch by subsequent transfer of cleaved oligosaccharide. They are part of a group called branching enzymes which catalyze the formation of alpha-1,6 branch points in either glycogen or starch. This group includes proteins from bacteria, eukaryotes, and archaea. The Alpha-amylase family comprises the largest family of glycoside hydrolases (GH), with the majority of enzymes acting on starch, glycogen, and related oligo- and polysaccharides. These proteins catalyze the transformation of alpha-1,4 and alpha-1,6 glucosidic linkages with retention of the anomeric center. The protein is described as having 3 domains: A, B, C. A is a (beta/alpha) 8-barrel; B is a loop between the beta 3 strand and alpha 3 helix of A; C is the C-terminal extension characterized by a Greek key. The majority of the enzymes have an active site cleft found between domains A and B where a triad of catalytic residues (Asp, Glu and Asp) performs catalysis. Other members of this family have lost the catalytic activity as in the case of the human 4F2hc, or only have 2 residues that serve as the catalytic nucleophile and the acid/base, such as Thermus A4 beta-galactosidase with 2 Glu residues (GH42) and human alpha-galactosidase with 2 Asp residues (GH31). The family members are quite extensive and include: alpha amylase, maltosyltransferase, cyclodextrin glycotransferase, maltogenic amylase, neopullulanase, isoamylase, 1,4-alpha-D-glucan maltotetrahydrolase, 4-alpha-glucotransferase, oligo-1,6-glucosidase, amylosucrase, sucrose phosphorylase, and amylomaltase.
COG0296 GlgB 0.0 23 623 21 628
1,4-alpha-glucan branching enzyme [Carbohydrate transport and metabolism].

CAZyme Hits      help

Hit ID E-Value Query Start Query End Hit Start Hit End
ADB46806.1 4.25e-221 6 631 7 642
QGT51029.1 3.50e-218 28 631 33 640
AXB82201.1 2.55e-217 6 619 7 624
CBL01646.1 2.69e-217 28 631 32 640
AXB29737.1 4.96e-216 28 631 32 640

PDB Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
3K1D_A 5.15e-188 17 619 108 717
Crystalstructure of glycogen branching enzyme synonym: 1,4-alpha-D-glucan:1,4-alpha-D-GLUCAN 6-glucosyl-transferase from mycobacterium tuberculosis H37RV [Mycobacterium tuberculosis H37Rv]
6JOY_A 5.02e-187 26 620 22 615
TheX-ray Crystallographic Structure of Branching Enzyme from Rhodothermus obamensis STB05 [Rhodothermus marinus]
5GR1_A 9.62e-184 17 626 136 776
Crystalstructure of branching enzyme Y500A/D501A mutant from Cyanothece sp. ATCC 51142 in complex with maltoheptaose [Crocosphaera subtropica ATCC 51142],5GR6_A Crystal structure of branching enzyme Y500A/D501A double mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GQZ_A 2.72e-183 17 626 136 776
Crystalstructure of branching enzyme Y500A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]
5GR0_A 7.67e-183 17 626 136 776
Crystalstructure of branching enzyme D501A mutant from Cyanothece sp. ATCC 51142 [Crocosphaera subtropica ATCC 51142]

Swiss-Prot Hits      download full data without filtering help

Hit ID E-Value Query Start Query End Hit Start Hit End Description
P30539 6.08e-203 27 621 26 630
1,4-alpha-glucan branching enzyme GlgB OS=Butyrivibrio fibrisolvens OX=831 GN=glgB PE=1 SV=1
Q1AZ86 6.96e-199 23 622 114 718
1,4-alpha-glucan branching enzyme GlgB OS=Rubrobacter xylanophilus (strain DSM 9941 / NBRC 16129 / PRD-1) OX=266117 GN=glgB PE=3 SV=1
B8CVY1 4.36e-198 13 622 9 626
1,4-alpha-glucan branching enzyme GlgB OS=Halothermothrix orenii (strain H 168 / OCM 544 / DSM 9562) OX=373903 GN=glgB PE=3 SV=1
Q608L5 9.11e-196 28 620 125 722
1,4-alpha-glucan branching enzyme GlgB OS=Methylococcus capsulatus (strain ATCC 33009 / NCIMB 11132 / Bath) OX=243233 GN=glgB PE=3 SV=1
A1VC54 2.25e-195 22 621 25 632
1,4-alpha-glucan branching enzyme GlgB OS=Desulfovibrio vulgaris subsp. vulgaris (strain DP4) OX=391774 GN=glgB PE=3 SV=1

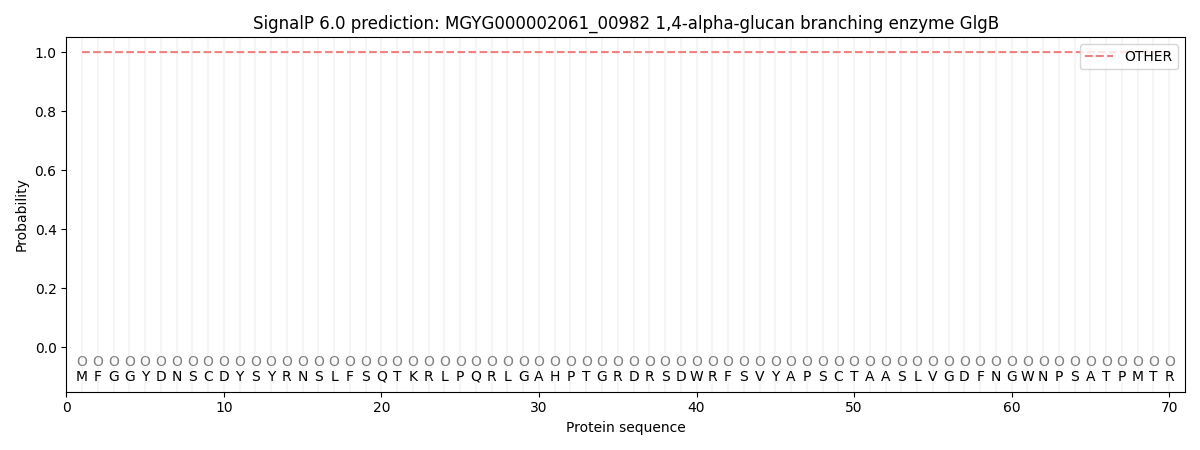

SignalP and Lipop Annotations help

This protein is predicted as OTHER

Other SP_Sec_SPI LIPO_Sec_SPII TAT_Tat_SPI TATLIP_Sec_SPII PILIN_Sec_SPIII
1.000037 0.000004 0.000000 0.000000 0.000000 0.000000

TMHMM  Annotations      help

There is no transmembrane helices in MGYG000002061_00982.
